BW Casing

Application:
AW casing is engineered to surpass expectations for a casing and features quicker make-up and easier break-out characteristics for wireline core drilling.
Material: 4130 / 30CrMnSi
O.D: 57.1mm
I.D: 48.4mm

Description

For wireline coring exploration, application of casing pipe is necessary. In wireline drilling tools working project, larger sized drill rods are usually selected as casings. But for economical consideration, using drill rods as casing is worn out very quickly, so casing pipes are introduced as an alternative option. Our company recommended W series casing, which are re-usable, effective and economical. Casings are made of high quality tubing, and they are connected tightly using pin and box thread .W series casings also have matched casing drive shoes. Normally,? AW BW NW HW and PW are available for a selection.

Product name Product code Description O.D (m) I.D (mm) Net weight (kg) Gross weight (kg) Thread pitch (mm) Outer thread length (mm) Product length (mm)
BW-10' 20550201 10' 73 60.3 31.8 6.35 63.5 3048
BW-3M 20550202 3M 73 60.3 31.3 6.35 63.5 3000
BW-5' 20550203 5' 73 60.3 15.9 6.35 63.5 1524
BW-1.5M 20550204 1.5M 73 60.3 15.65 6.35 63.5 1500

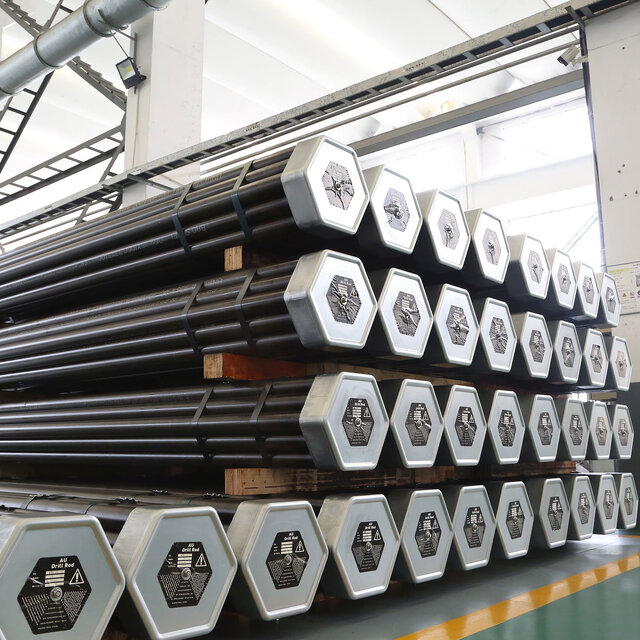

Product name Label color Package L (mm) Package W (mm) Package H (mm) Weight of each bundle (kg)
BW-10' Red 3150 378 326 604.2
BW-3M Red 3100 378 326 594.7
BW-5' Red 1620 378 326 302.1
BW-1.5M Red 1600 378 326 297.35
